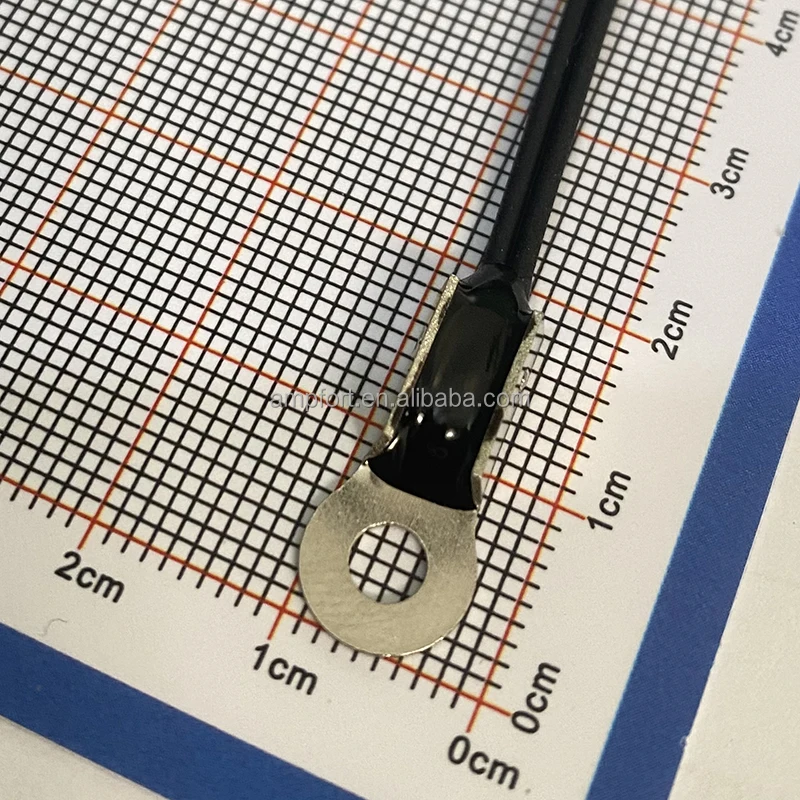

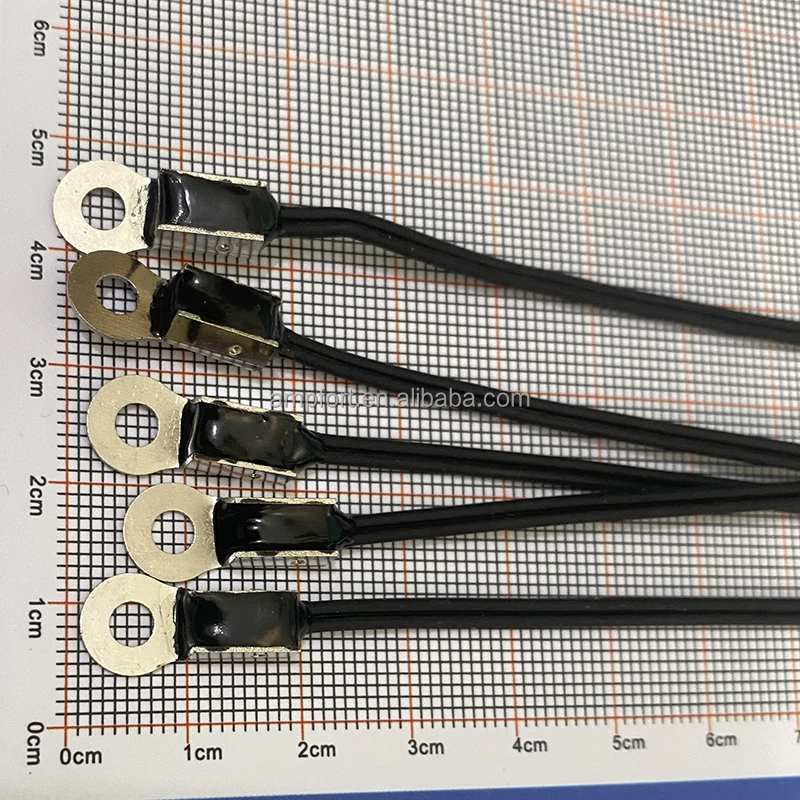

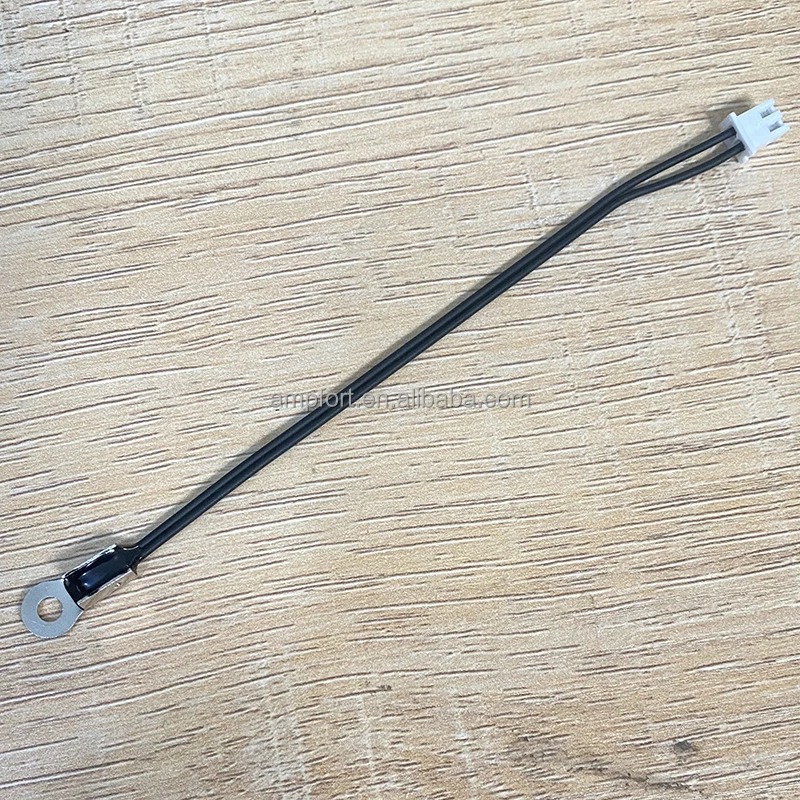

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector

Brand Name : CNAMPFORT

Model Number : TSA0103FA339

Certification : ROHS,REACH

Place of Origin : Dongguan,China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10KKPCS PER MONTH

Delivery Time : 7-10 Workdays

Packaging Details : Bulk

Name : NTC Temperature Sensor 10K

R(25℃) : 10K

B(25/50) : 3950K

Measuring range : -30~+105C

Housing : 3.7*8.5+17.5*0.5t Nickel plated brass

Cable : UL4413 26AWG 2P

Terminal : XH-T

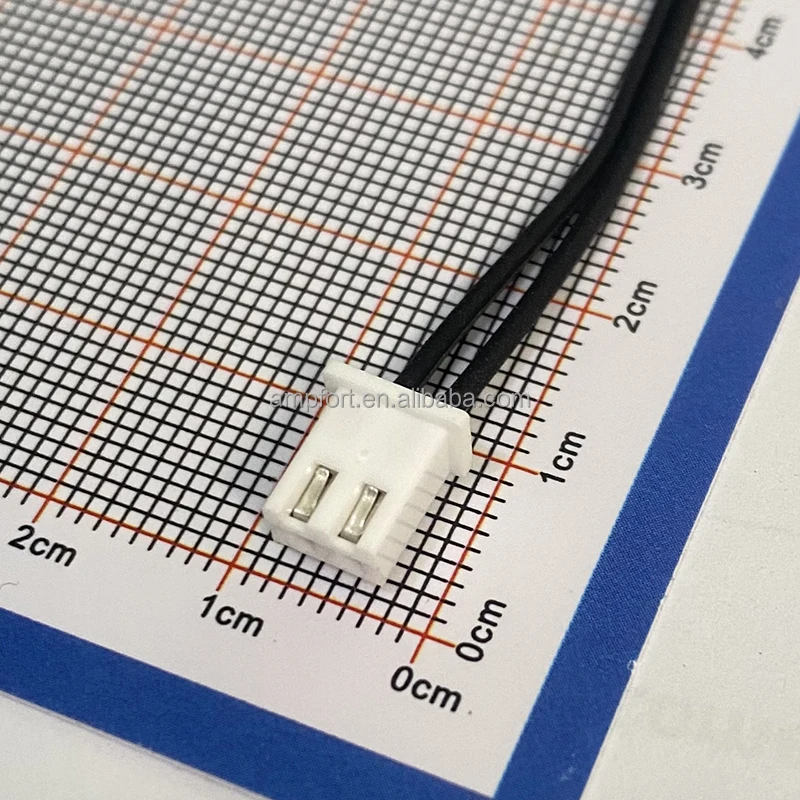

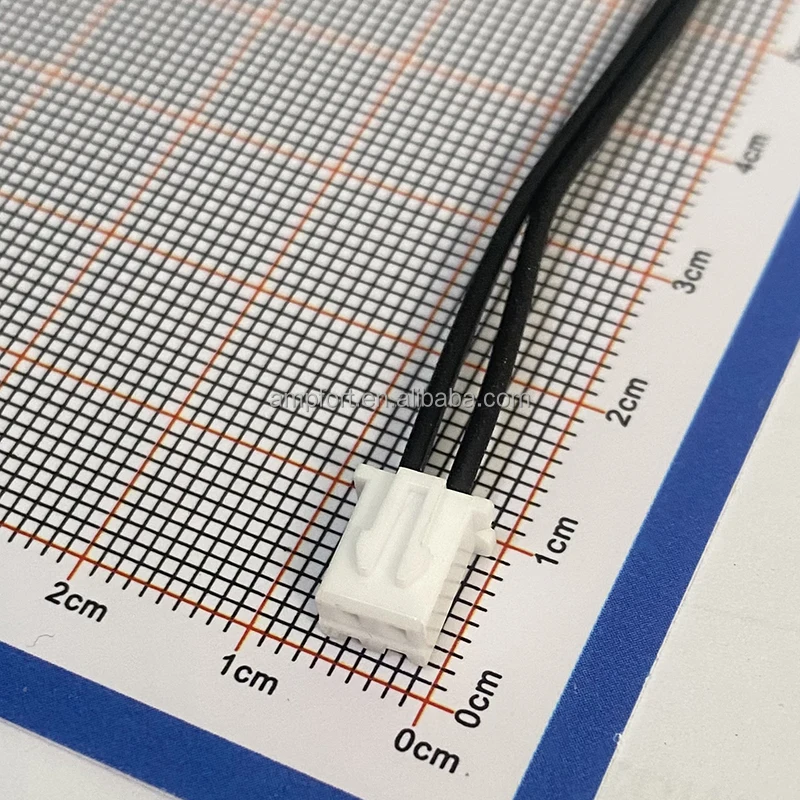

Connector : XH-2Y

Typical Application : Car battery

Cable Length : 115mm or custom requirements

Contact Now

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector

Description

Ampfort’s NTC thermistors with R-T curves accurately matched are interchangeable thermistors precisely designed for high quality to provide accurate and stable temperature sensing capability for temperature measurement and/or compensation. They are presented in small, epoxy encapsulated radial leaded assemblies, with various wires and housings for different applications.Ampfort’s ring lug NTC family of NTC thermistors are a cost-effective temperature sensor that meet the surface temperature sensing needs of a broad range of electronic and electrical applications. They leverage the different resistances, beta values and tolerances of the Ampfort MF52 epoxy coated family of NTCs.

Typical Applications

Temperature Sensing: NTC thermistor-probe assemblies are primarily used for accurate temperature measurement in various applications.
HVAC Systems: They play a crucial role in heating, ventilation, and air conditioning systems to maintain precise temperature control.
Industrial Automation: These assemblies are vital in industrial processes to monitor and regulate temperature for quality control and safety.
Medical Equipment: NTC thermistor-probe assemblies ensure precise temperature control in medical devices like incubators and patient monitoring systems.
Automotive: They are used in automotive applications, including engine management, climate control, and battery temperature monitoring.

Main Technology Parameters

Item Ratings
Rated zero-power resistance R25 10Kohm
Tolerance of rated zero-power resistance R25 ±1%
Rated B-value B25/50 3950K
Tolerance of rated B-value B25/50 ±1%
Cable UL4413 26AWG 2P L=115±10mm(Exposed)
Terminal XH-T
Connector XH-2Y
Operating temperature range -30℃~+105℃
Housing 3.7*8.5+17.5*0.5t

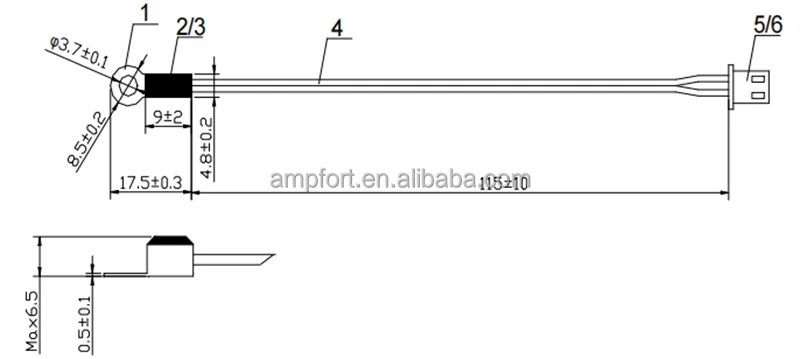

Specification of CWFSX01034FAB1500

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector

Epoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y ConnectorEpoxy Encapsulated Surface Mount NTC Temperature Sensor 10K 1% 3950 With Diameter 3.7mm O Ring And XH-2Y Connector
