MYE30-471 380J Metal Oxide Varistor Surge Suppressor Varistor with Screw Terminals M5

Heavy Duty Disk Metal Oxide Varistor MYE30-471 B32K300 With Screw Terminals M4 M5

Description Of The Heavy Duty Disk Metal Oxide Varistor MYE30-471

Block varistors are disk shaped varistor elements that are potted in a plastic housing and feature screw terminals on top. Block varistors can be screw fixed and used as stand-alone devices. Both the housing and potting are made of flame-retardant materials.Housing varistor; The inside varistor diameter is 32mm round shape.C type terminal, equal to EPCOS High E B32K series,5. Peak Current: 30000A, MYE varistors are designed for heavy industrial electric products of extremely high demand on surge withstanding capacity, as well as poor working environments.

Construction Of The Heavy Duty Disk Metal Oxide Varistor MYE30-471

■ Disk-shaped varistor element, potted in plastic housing

■ Housing and potting flame-retardant to UL 94 V-0

■ Screw terminals M4 (MYE20 … 30) Screw terminals M5 (MYE70 … 100)

Dimensions Of The Heavy Duty Disk Metal Oxide Varistor MYE30-471 (mm)

Part Numbering Of The Heavy Duty Disk Metal Oxide Varistor MYE30-471

Features Of The Heavy Duty Disk Metal Oxide Varistor MYE30-471

■ Heavy-duty varistors (surge current capability up to 100 kA)

■ Wide operating voltage range 75 … 1100 VRMS

■ MYE40 also available without housing

■ PSpice models

Sample application: Protection against a high-energy surge in industrial devices

Block varistors and strap varistors are high-energy type products used for power supplies of industrial devices and communication devices, power switchboards at power plants and power substations, railway signal systems, and others, and their advantage is an extremely high surge current capability. A block varistor is contained in a case and has screw terminals, and a strap varistor has strap (flat plate) terminals with holes that are fixed with screws (or soldered). A surge arrester for AC power line protection is also used.
Fig. 9 Example of protection against a high-energy surge in an industrial device

Some Ampfort Varistor Cross Reference List

MYE Series Overview

Series	Max pulse current (8/20μs) Imax	Varistor voltage VN	Physical map
MYE/E20	20KA	200 ~ 1200V
MYE/E30	30KA	200～1200V
MYE/E40	40KA	200～1200V
MYE/E70	70KA	200～1200V

Actual Product Images

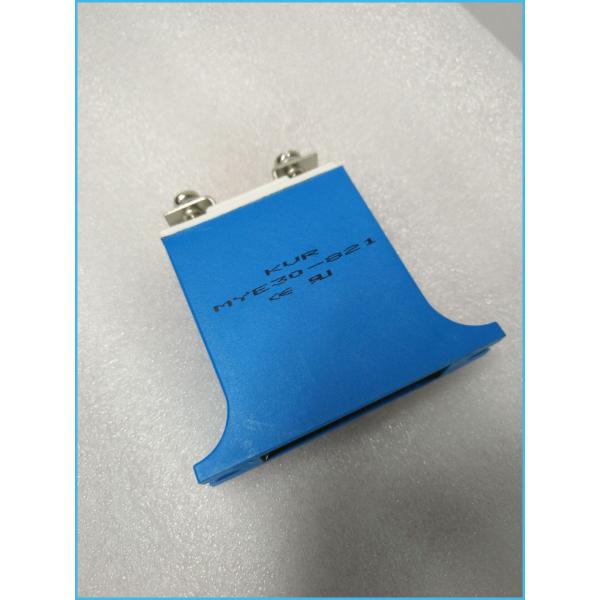

MYE30-471 Metal Oxide Varistor
